SPECIFICATIONS

MODELS

TDC-1200

TDC-1500

TDC-1700

CUTTING WIDTH

12′

15′

17′

CUTTING HEIGHT (1/4″ INCREMENTS)

1″ – 5″

1″ – 5″

1″ – 5″

TRACTOR HP RANGE

25 – 80 PTO

30 – 80 PTO

35 – 80 PTO

TRACTOR PTO SPEED

540

540

540

HITCH TYPE

CAT. 1 & 2, DRAWBAR

CAT. 1 & 2, DRAWBAR

CAT. 1 & 2, DRAWBAR

FRONT HITCH

ADJUSTABLE 6 POSITION

ADJUSTABLE 6 POSITION

ADJUSTABLE 6 POSITION

NUMBER OF BLADES PER DECK (TOTAL)

3 (9)

3 (9)

3 (9)

BLADE TIP SPEED

15,747 FPM

16,863 FPM

16,732 FPM

CENTER DECK CUTTING WIDTH (FT.)

5′

6′

6′

WING DECK CUTTING WIDTH (FT.)

4′

5′

6′

DECK OVERLAP ADJUSTMENT (IN.)

6″

6″

6″

DEGREE OF CUTTING ATTITUDE (FLEX)

30⁰ UP / 15⁰ DOWN

30⁰ UP / 15⁰ DOWN

30⁰ UP / 15⁰ DOWN

DECK THICKNESS

8-GAUGE STEEL PLATE

8-GAUGE STEEL PLATE

8-GAUGE STEEL PLATE

SPLITTER GEARBOX HP

80 HP

80 HP

80 HP

MOWER DECK GEARBOX HP

50 HP

50 HP

50 HP

DECK LIFT CYLINDERS (IN.)

2.5″ X 10″ SINGLE ACTING

2.5″ X 10″ SINGLE ACTING

2.5″ X 10″ SINGLE ACTING

MAIN DRIVELINE

CAT. 6 CONSTANT VELOCITY WITH SLIP CLUTCH

CAT. 6 CONSTANT VELOCITY WITH SLIP CLUTCH

CAT. 6 CONSTANT VELOCITY WITH SLIP CLUTCH

HYDRAULICS

3 – SINGLE ACTION

3 – SINGLE ACTION

3 – SINGLE ACTION

TRANSPORT WIDTH (FT.)

7.6′

8.1′

8.3′

TRANSPORT LENGTH (FT.)

11.9′

12.2′

12.2′

TRANSPORT HEIGHT (FT.)

6.2′

7.7′

8.7′

OVERALL WIDTH (FT.)

12.2′

15.2′

17.2′

MAX. OVERALL LENGTH (FT.)

12.7′

13′

13′

DEFLECTOR TYPE

REAR SAFETY CHAINS STD.

REAR SAFETY CHAINS STD.

REAR SAFETY CHAINS STD.

TRANSPORT TIRES (2)

20.5 X 8 – 10 HIGHWAY RATED

20.5 X 8 – 10 HIGHWAY RATED

20.5 X 8 – 10 HIGHWAY RATED

TOTAL WEIGHT (LB.)

2,742 LBS.

2,874 LBS.

2,995 LBS.

WARRANTY

1-YEAR LIMITED WARRANTY

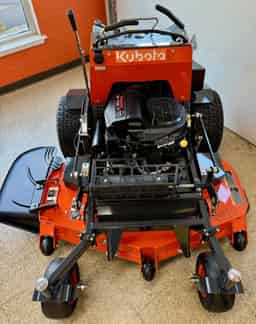

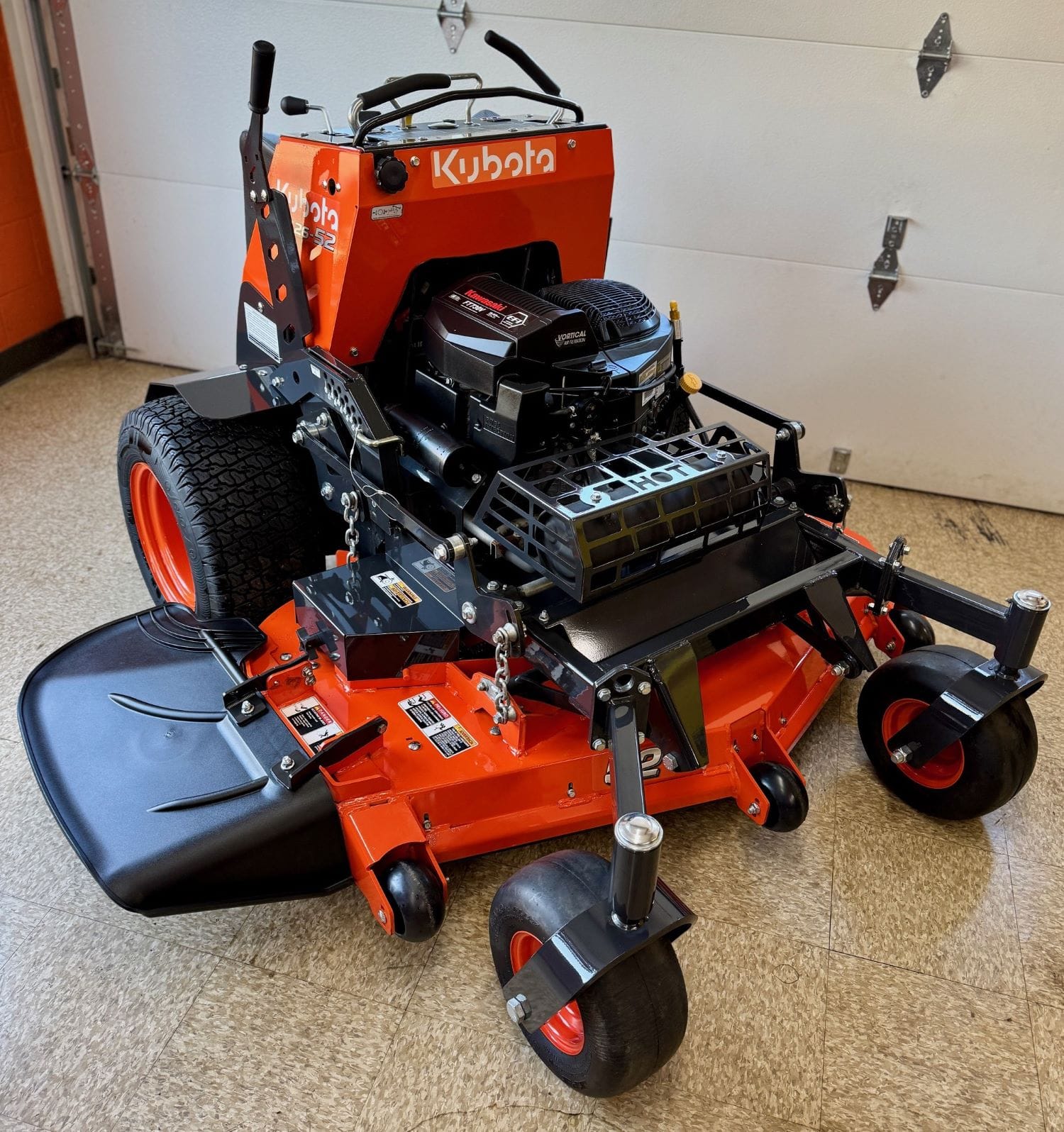

Kubota SZ26NC-52-2 ~Stand on Mower~

$10,000.00

Similar Products

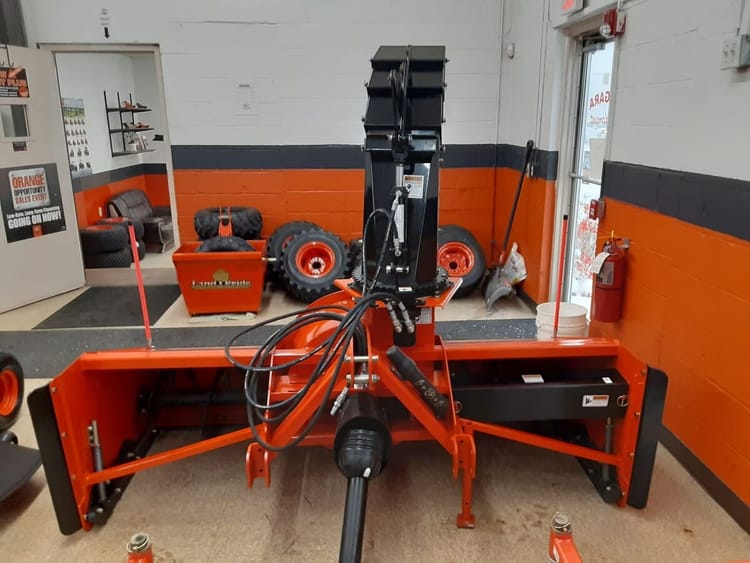

New Low Price! BRAND NEW!! Land Pride 84″ Pull Behind Snow Blower
